SPECIFICATIONS

Application: training foam allowing for reignition

Brand Name: ruijunhong

Feature: Portable

Model Number: other

Place of Origin: Jiangxi, China

application: Commercial Buildings, Family Homes, Irrigation and

cable length: -

customized support: OEM, ODM

horsepower: 15hp

motor: Diesel engine

outlet size: 2.5"(65mm)

place of origin: Zhejiang, China

pressure: Medium Pressure

structure: Vacuum Pump

voltage: -

Dear all

Welcome to visit our store.We're leading brand in the field of portable fire pump,fire hose nozzle in China,established in 1988.Our products include gasoline/diesel fire pump,floating pump,forest fire pump,fire nozzle,water mist fire nozzle,etc.Hoping to have a nice purchasing experience with us. Many thanks.

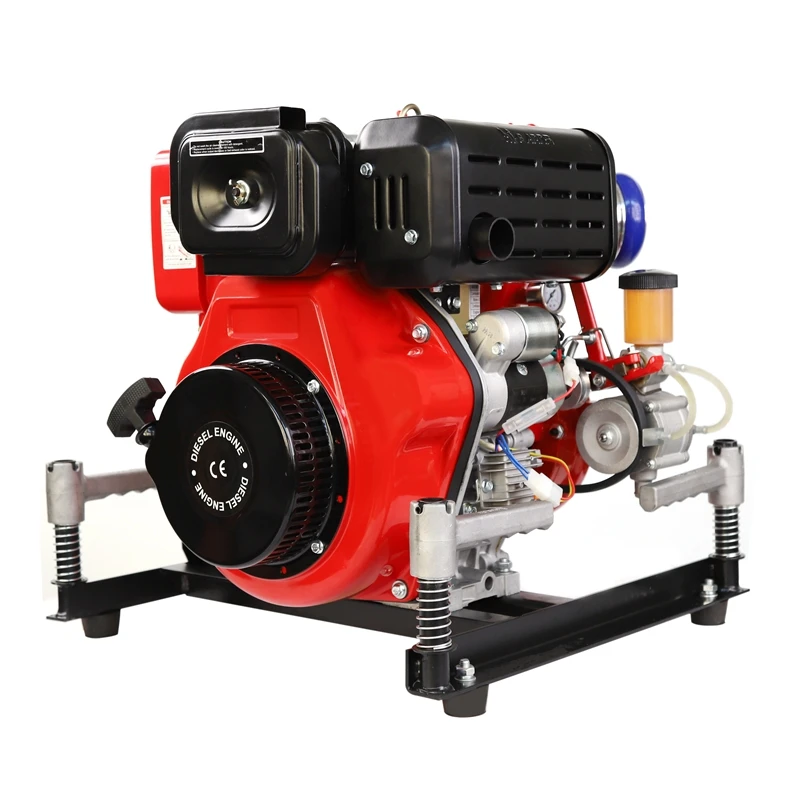

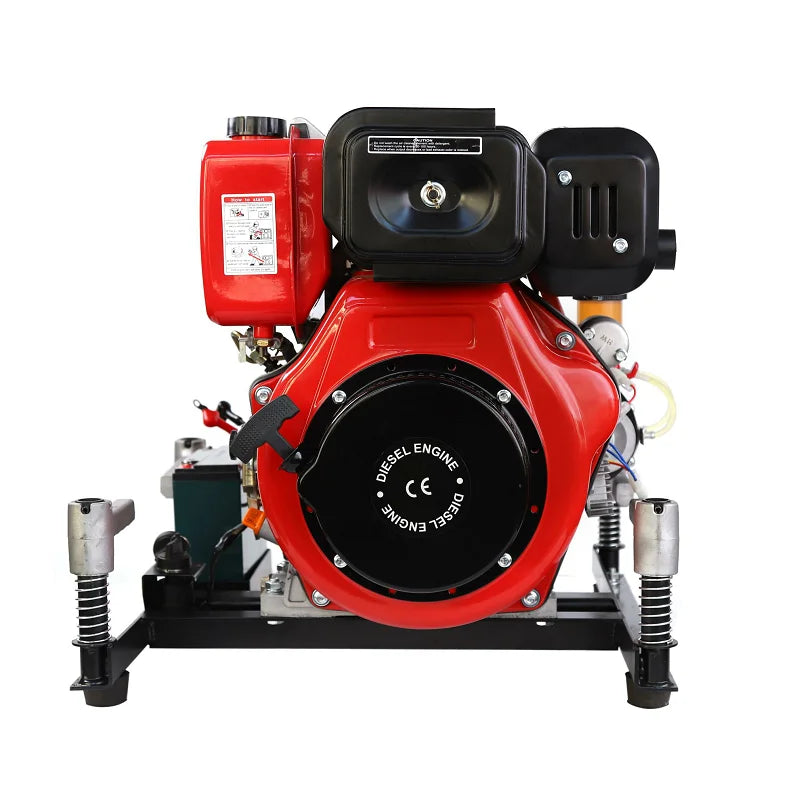

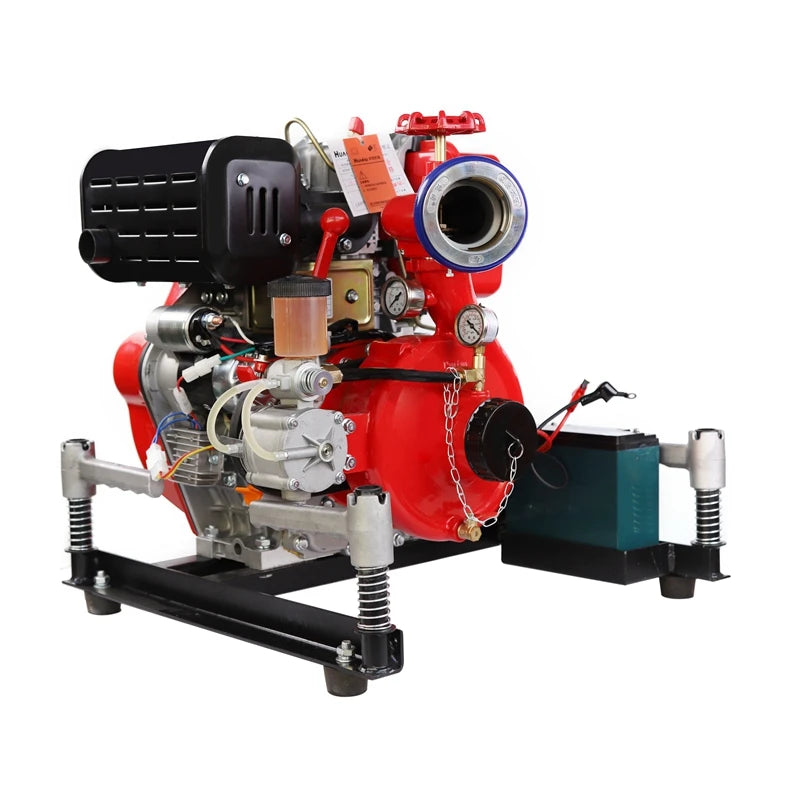

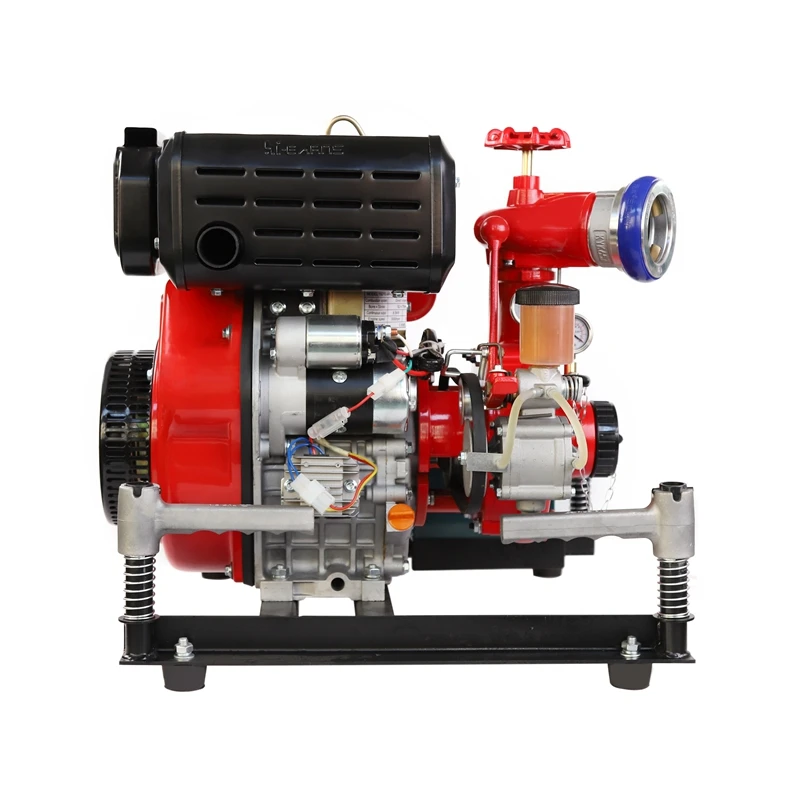

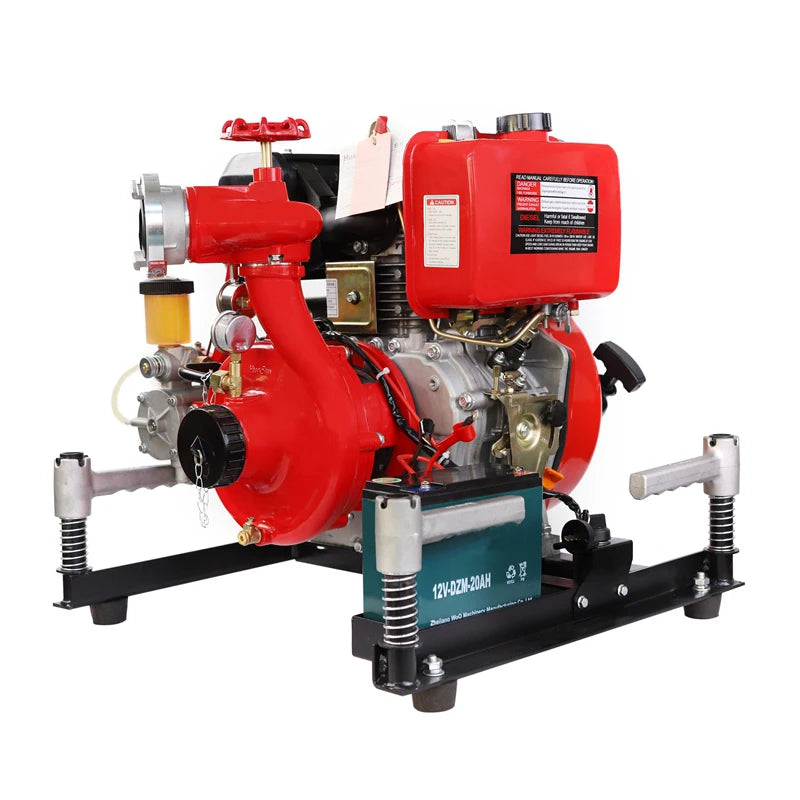

Product Specifications

Type			4 Strokes,air cooled diesel engine
Cylinders			Single Cylinder
Output Power			15HP(11KW)
Fuel Type			Diesel 0# or below
Fuel Tank Capacity			6.5L
Fuel System			Direct Fuel Injection
Lubrication system			Splash lubrication
Engine oil capacity			0.9L
Starter			Recoil / Electric starter
Ignition method			High pressure atomization
Fuel consumption			3.5L/h
Total Weight			65 KGS
Pump Specification			Single suction with single stage centrifugal pump
Inlet Diameter			2.5" (65mm)
Outlet Diameter			2.5" (65mm)
Number of outlets			1
Outlet valve type			Ball Valve
Water diversion method			Rotary vane vacuum pump water diversion
Suction time			≤15s
Maximum suction depth			9m
Maximum Water Lift			65m
Max. Flow			1000L/min
Rated Flow			600L/min
Rated Pressure			0.55MPa

Operation instruction

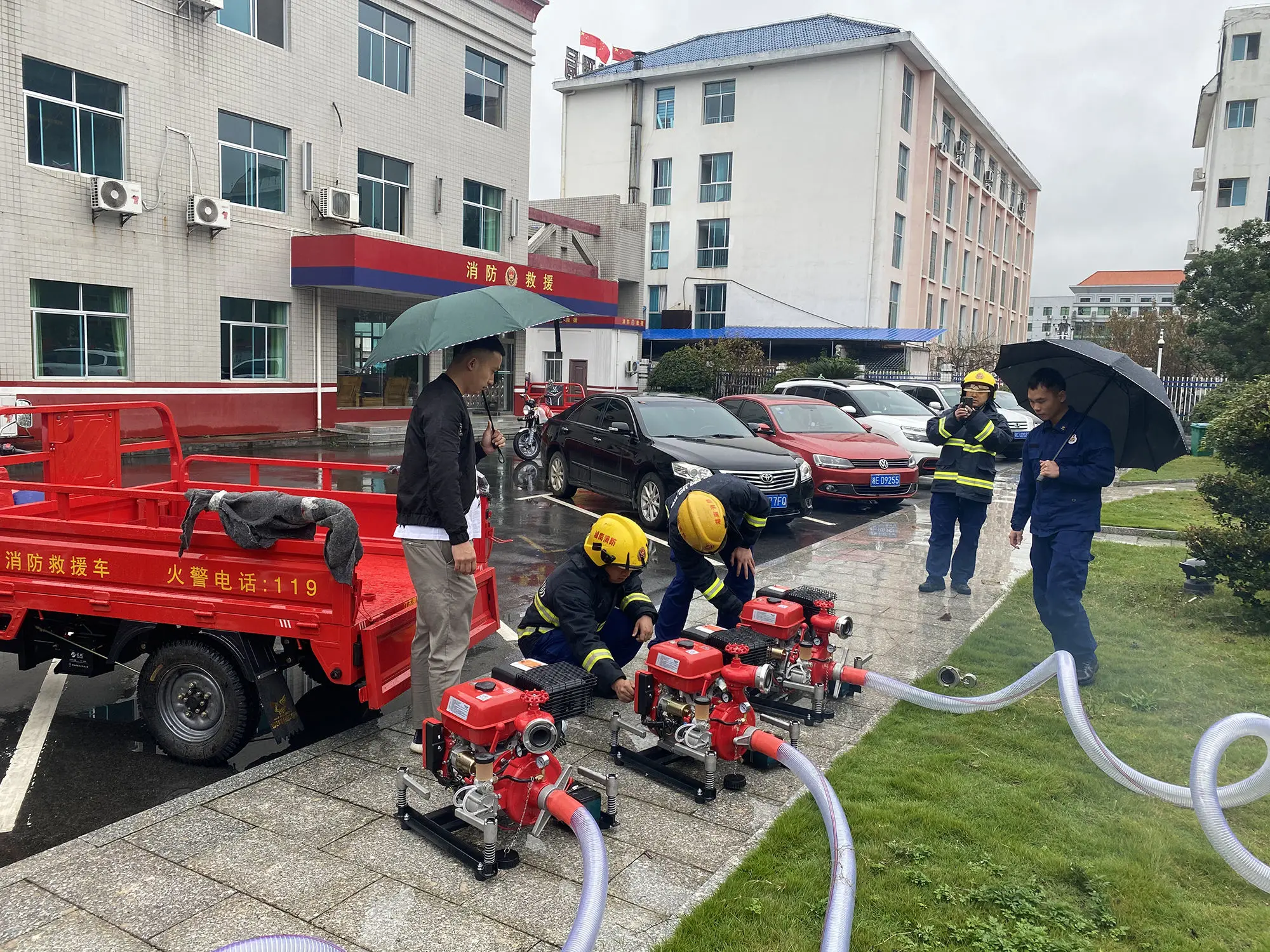

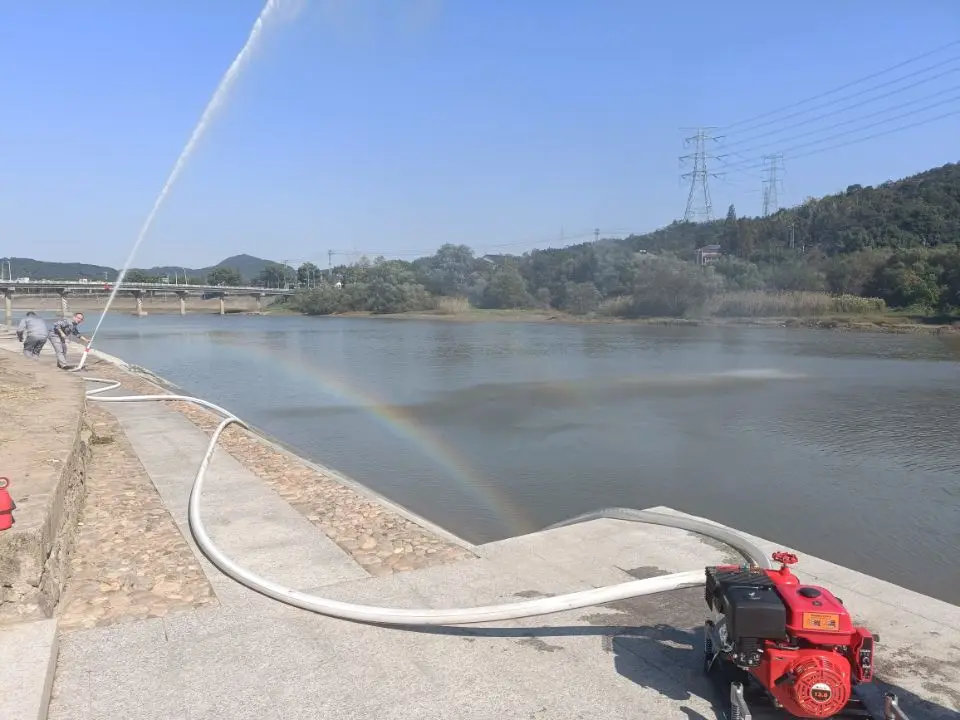

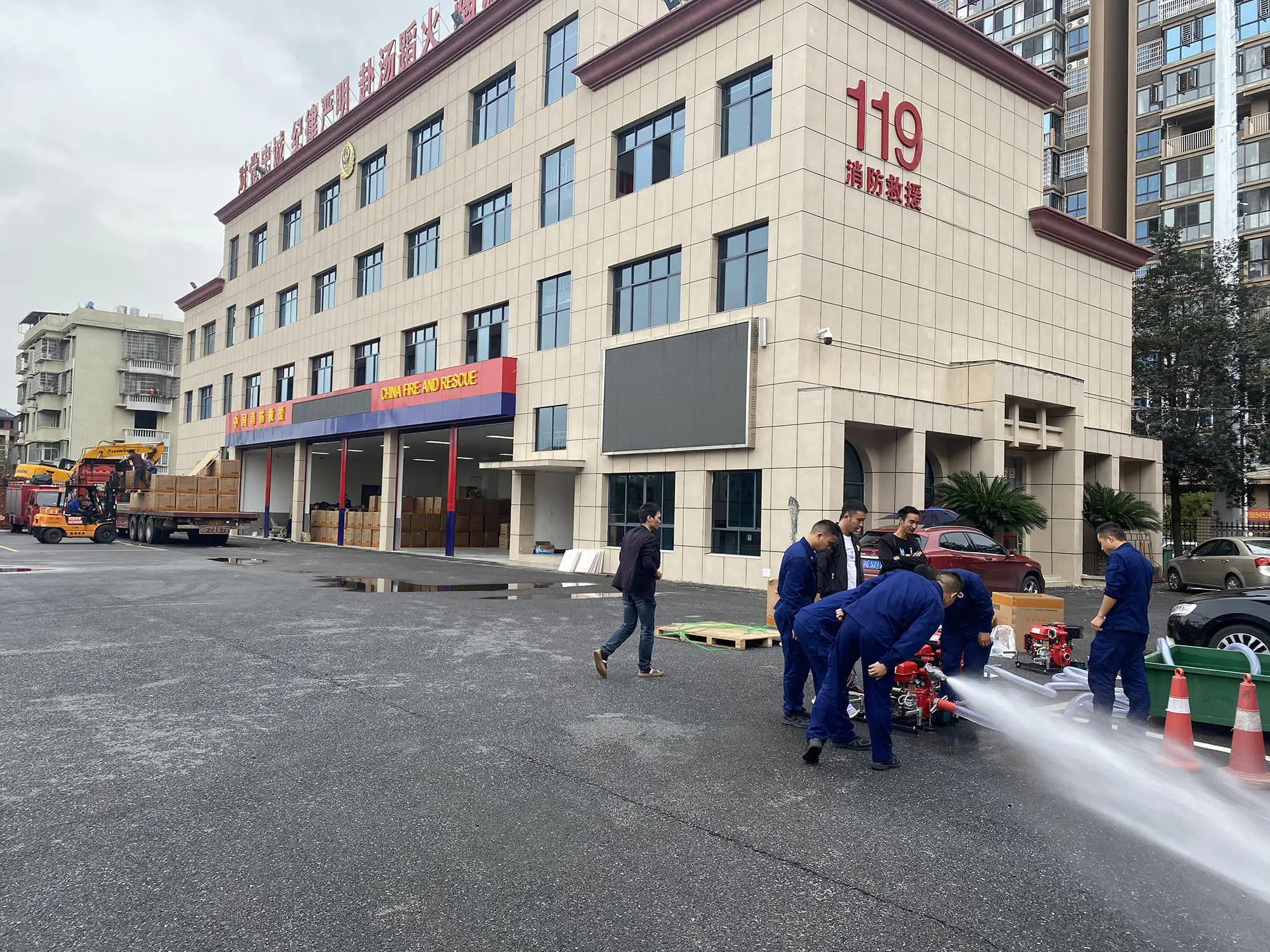

Application
