Description
xSPECIFICATIONS
Air Inlet Size: 1/4"
Applications: Pallets,Crating,Fences,Siding,Decking,Sheathing
Battery Included: No
Brand Name: KEYLEAD
Capacity: 2-3 nails per second
Certification: CE,EAC
Dimensions: 335mm x 130mm x 295mm {13 3/8"(H) x 5 1/8"(W) x 11 5/8"(L)}
Grade: Professional Industrial
Hign-concerned Chemical: None
Magazine Capacity: 250-400 nails
Model Number: CN55
Nail Gun Angle: 15 degree
Nail Length: 1" to 2-1/4"
Operation Pressure: 70-120psi (5-8.3bar)
Origin: Mainland China
Power Source: Pneumatic
Trigger Type: Rapid Fire Trigger
Type: Coil Nail Gun,MAX Design CN55 Industrial Air Coil Nailer
Use: Commercial Manufacture
Weight: 2.88kgs (6.33lbs)
is_customized: Yes
The CN55 Coil Nailer excels in rapid firing and portability, ideal for construction tasks like pallet assembly and fencing, compatible with 15° wire welded coil nails.

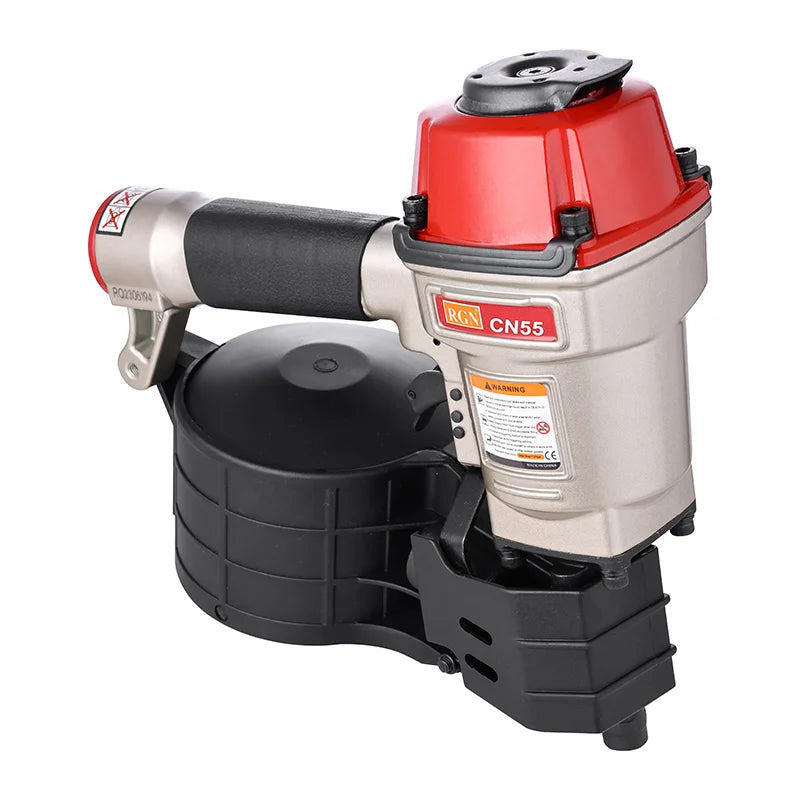

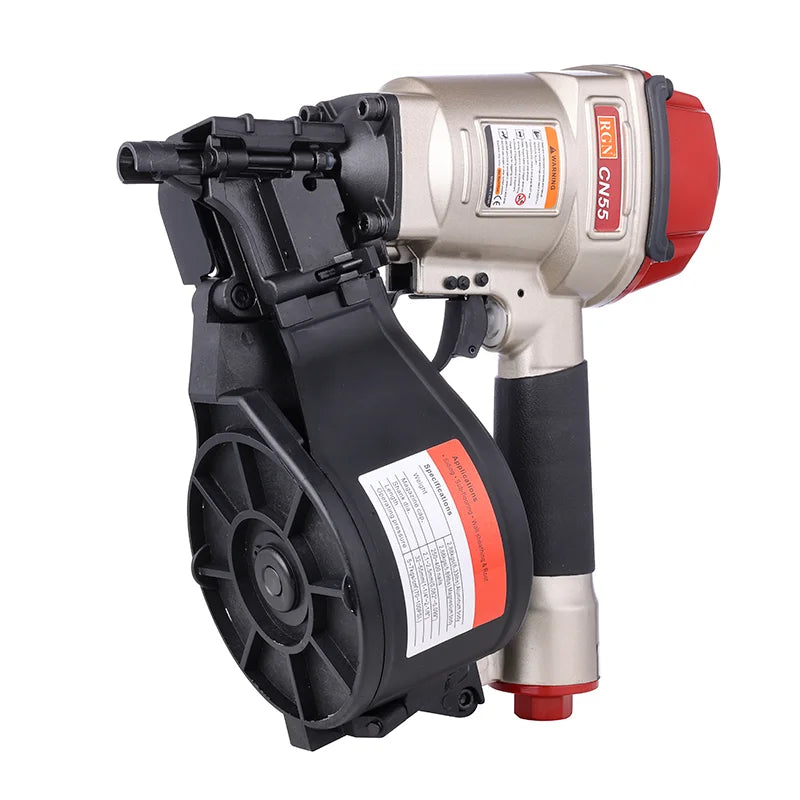

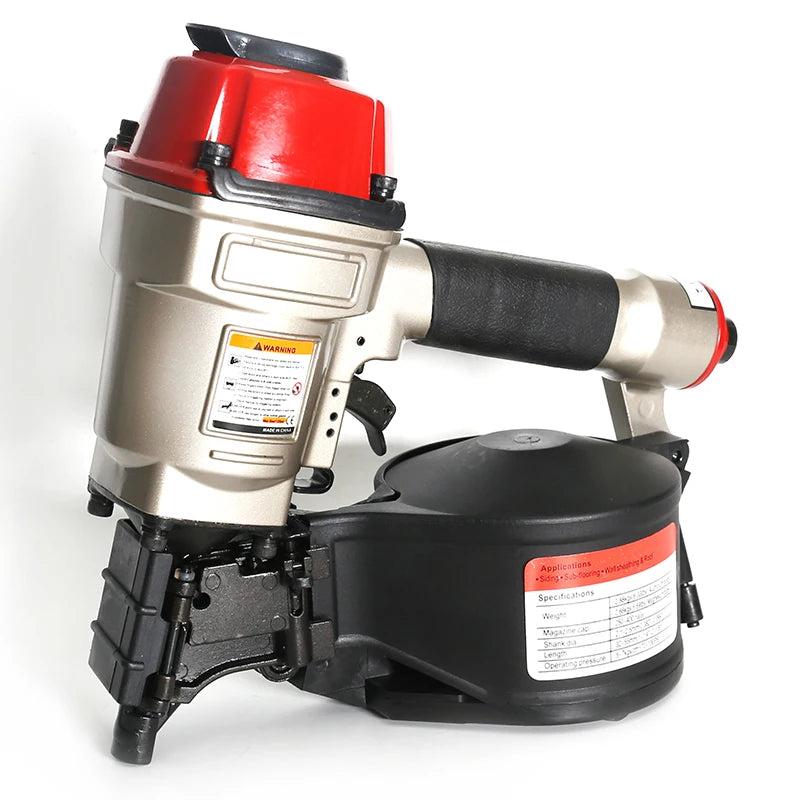

CN55 Coil Nailer Overview
Features:
Compatible with 15° wire welded coil nails.
Rapid fire capability: 10 times per second.
Lightweight and compact design for easy maneuverability and extended use.
Large magazine capacity for reduced reloading times.
Popular for its powerful performance.
Applications:
Assembly and repair of pallets, drums, and export wooden boxes.
Wooden fencing installation.
Crating.
General construction applications including siding, decking, and sheathing.
Product Details

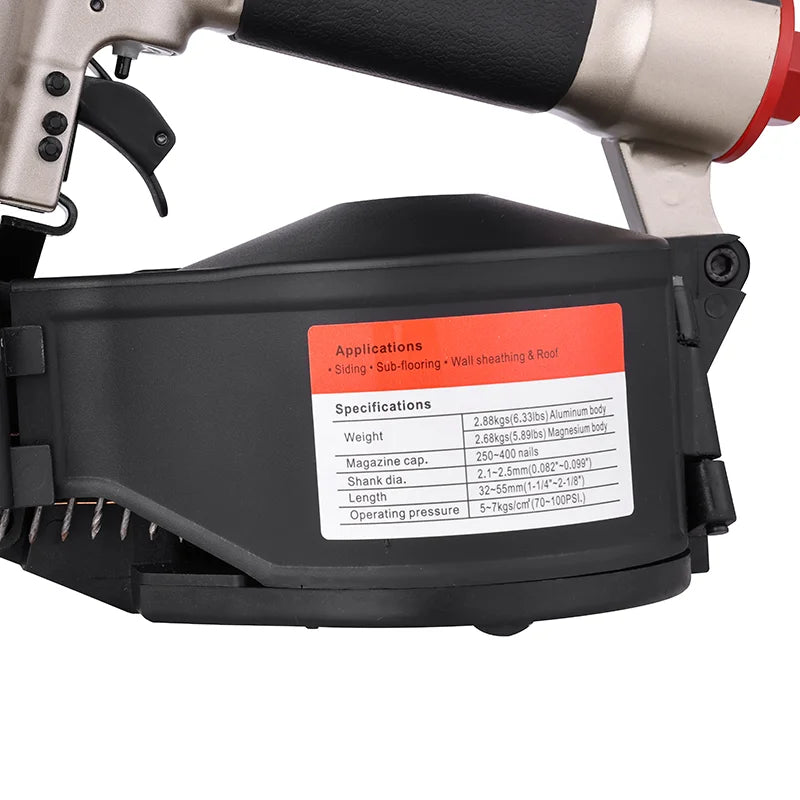

Tool Specifications:
Weight: 2.88 kg (6.33 lbs) with an aluminum body.
Dimensions: 335 mm x 130 mm x 295 mm (13-3/8" x 5-1/8" x 11-5/8").
Load Capacity: 250-400 nails.
Operating Pressure: 70-120 psi (5-8.3 bar).

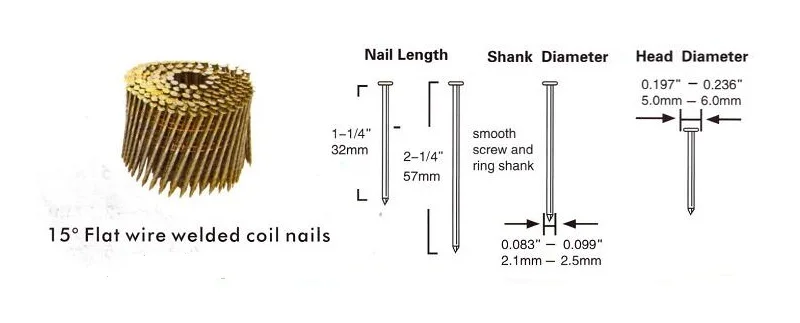

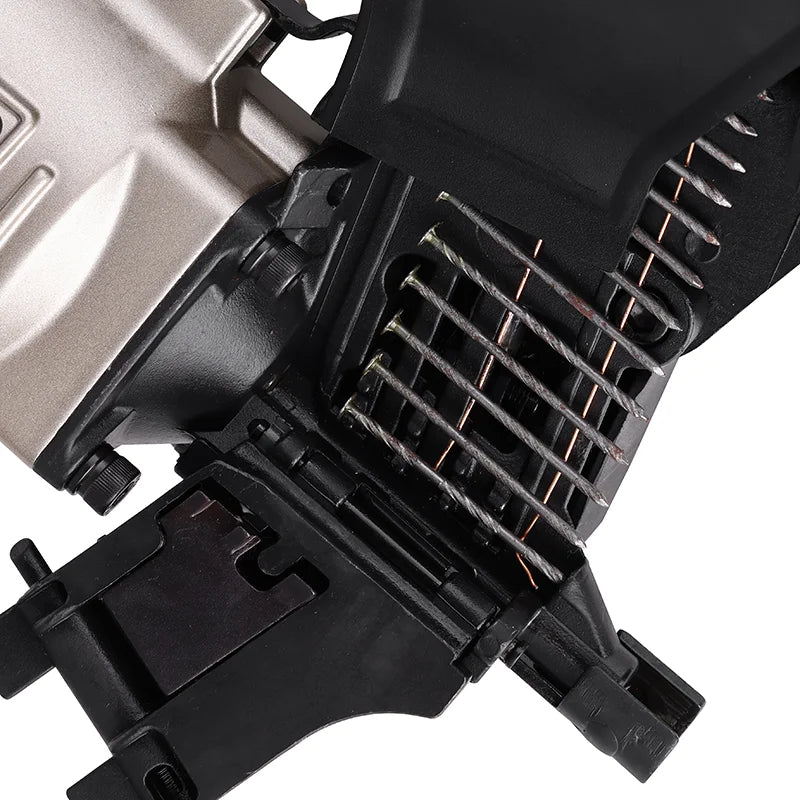

Fasteners Applicable:
15° Flat Wire Welded Coil Nails
Length: 32 mm to 57 mm.
Shank Diameter: 2.1 mm to 2.5 mm.
Head Diameter: 5.0 mm to 6.0 mm.
FEATURES
LIGHTWEIGHT DURABLE BODY

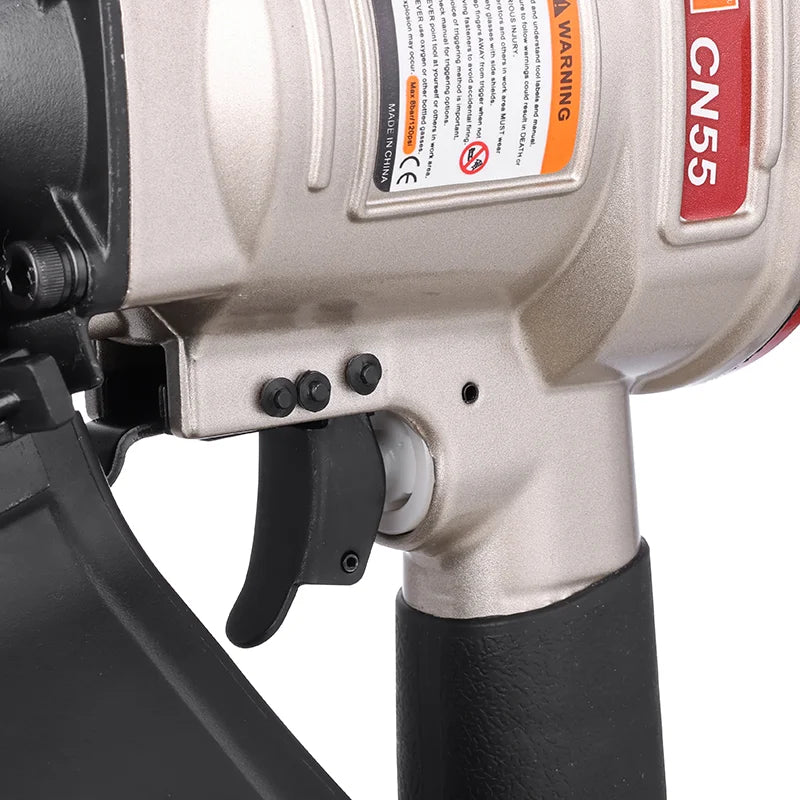

Durable aluminum frame and cylinder cap making this tool was built to last.ERGONOMIC DESIGN
Well-balanced design for comfortable handling and maneuvering of the tool.PROTECT YOURSELF FROM TOOL EXHAUST
Multi-directional exhaust cover allows users to divert exhaust air and fumes away from their face.SHOOTS A WIDE RANGE OF NAILS
Safely drives 1” to 2 ¼” wire welded nailsLARGE MAGAZINE CAPACITY
Load up to 350 nails
-
SPECIFICATIONS
WEIGHT6.33 lbsDIMENSIONS13 3/8"(H) x 5 1/8"(W) x 11 5/8"(L)
MINIMUM OPERATION PRESSURE70 PSIMAXIMUM OPERATION PRESSURE120 psiAIR INLET SIZE1/4"MAGAZINE CAPACITY250-400DEPTH CONTROLNoJAM CLEARINGNoTRIGGER TYPE
Rapid Fire Trigger
AIR CONSUMPTION
(FT3/CYCLE)0.032
FASTENERS
COLLATION TYPE |
Wire |
NAIL GUN ANGLE |
15 |
STRIP OR COIL |
Coil |
COMPATIBLE FASTENER TYPES |
Flat wire welded nails |
MINIMUM FASTENER SIZE |
1" |
MAXIMUM FASTENER SIZE |
2-1/4" |
MINIMUM NAIL DIAMETER |
.083" |
MAXIMUM NAIL DIAMETER |
.090" |
Applications ：Pallets Crating Packaging Sheathing Furring Fencing
Pallets Crating Fences Siding Decking Sheathing
